The E8900A 5G New Radio (NR) handheld spectrum analyzer covers the landscape of new wireless communication technology with all-new levels of flexibility and efficiency for construction and maintenance of 5G NR systems. Correlative interference analysis with interferometer DF antenna and GPS mapping can locate hard-to-isolate interference signals in max accuracy.

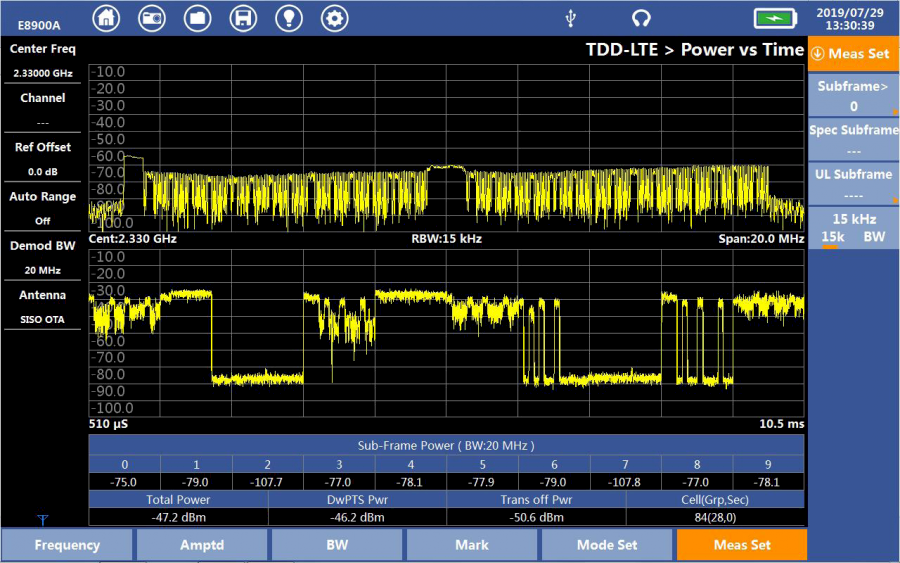

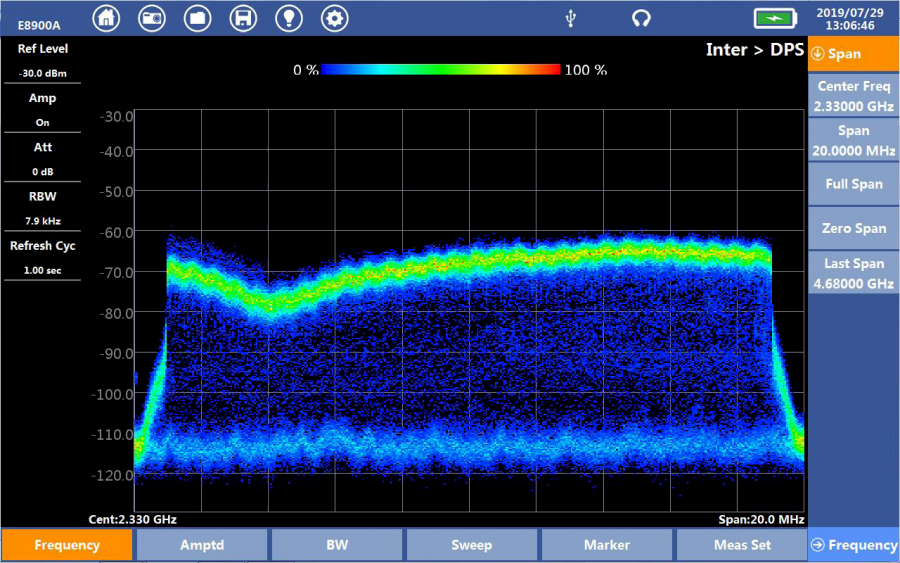

Persistence spectrum analysis separates the in-band signal transmission from underlying low-level inference signals in supreme clarity without service interruption. FDD-LTE or TDD-LTE signal demodulation analysis includes channel power, cell ID, 4G frequency- or time- division multiple-access signal analysis, sub-frame spectrum, and special sub-frame indicators.

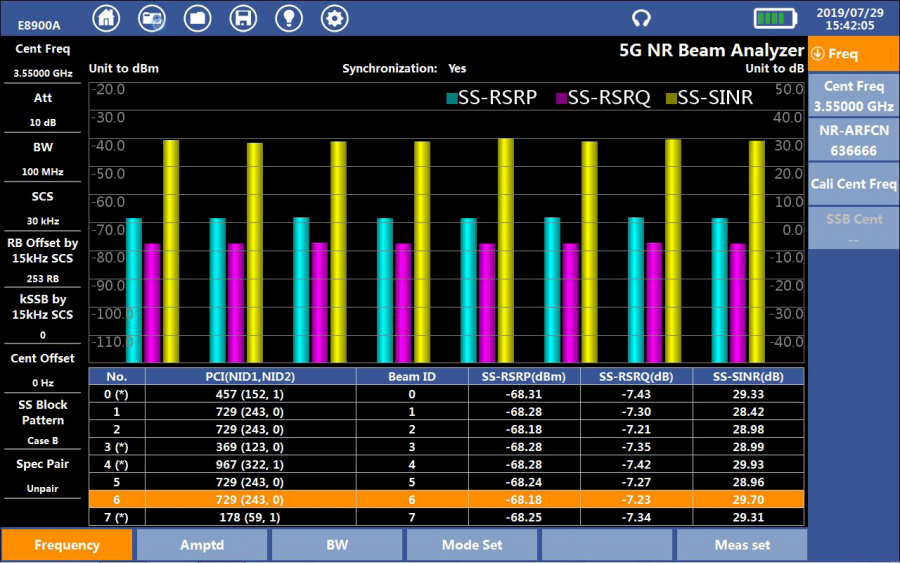

E8900A spectrum analyzer provides 5G-NR, LTE base analysis and signal demodulation functions, spectrum analysis, interference analysis, signal coverage functions and so on. Radio frequency power, EVM, constellation, cell ID, signal power, signal to noise ratio and other indicators can be measured by space interface or radio frequency.

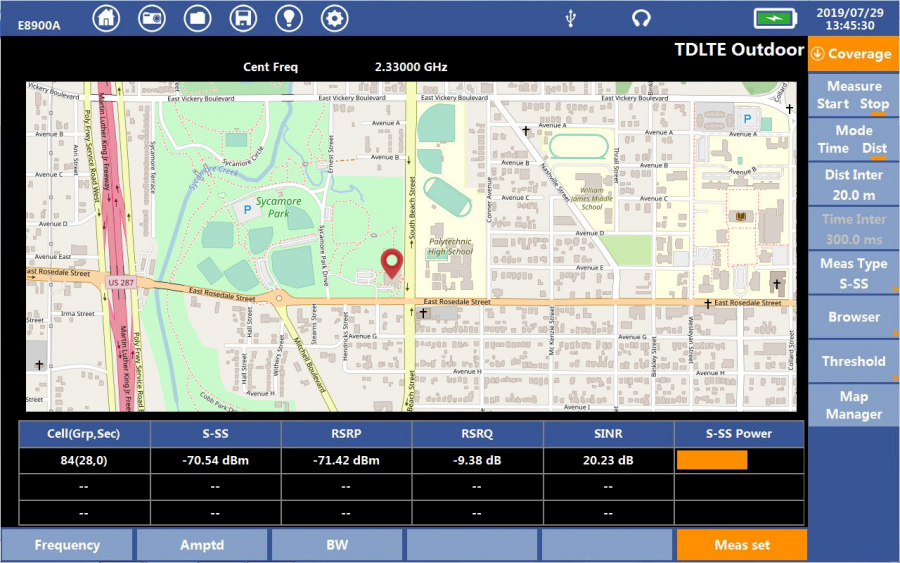

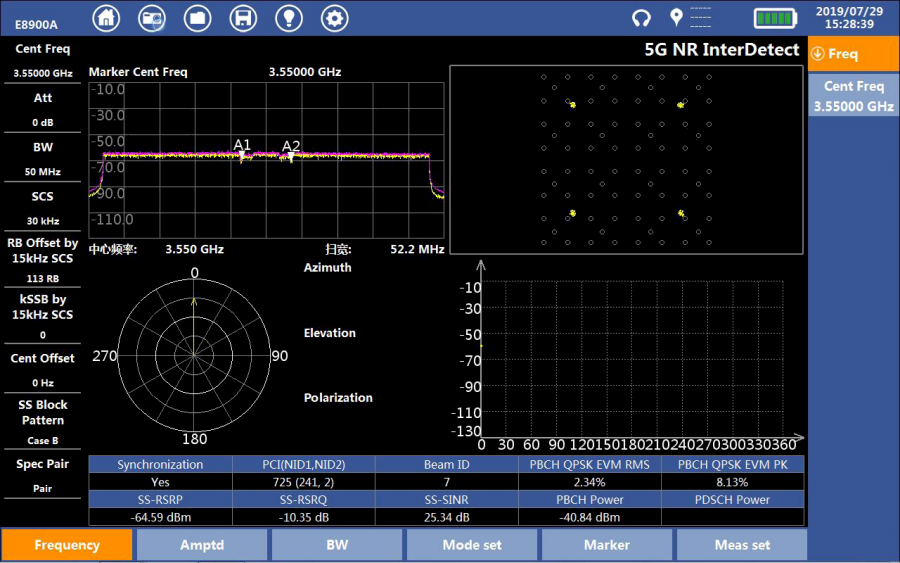

E8900A also has the function of interference test, which can be combined with DF series antenna to realize the positioning and search of interference signals. This function can also be used for remote PAD test with the optional PAD to find interference signals on the PAD. At the same time, interference search function can be equipped with DF series antenna for fast signal positioning. Meanwhile, E8900A also has the indoor and outdoor test function of 5G-NR and LTE base stations, which is used for testing base station coverage range. Finally, E8900A also has IQ data collection for third-party development.

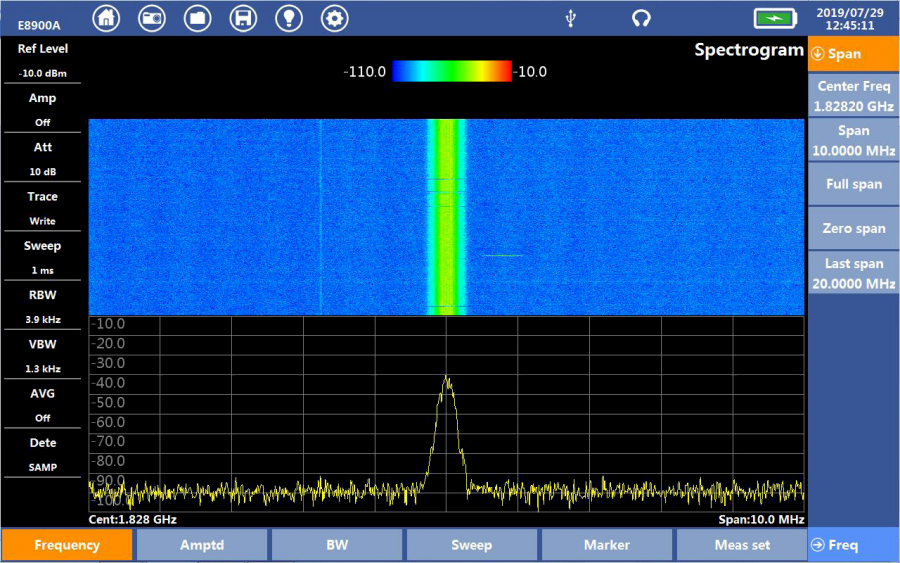

E8900A is a spectrum analyzer based on superheterodyne structure, with a wider 9GHz spectrum span, a wider 100MHz IF bandwidth, and a faster spectrum scan speed. It uses more advanced digital processing technology and powerful hardware processors, with faster, stronger signal processing and analysis capabilities.

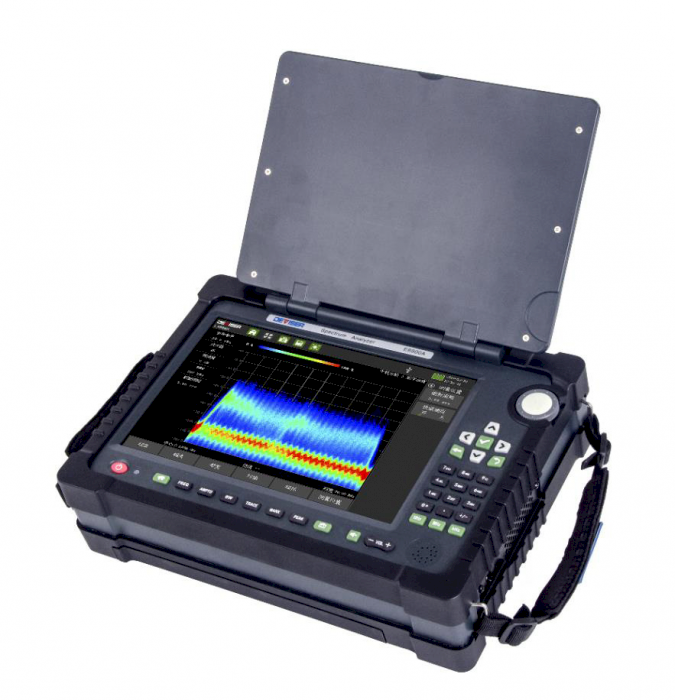

E8900A spectrum analyzer with 10.1 inches TFT color touch-panel display, it is also easy to observe the test results under strong light. It has a lithium battery and can work continuously for about 2 hours.
This instrument is produced by Deviser Instruments in accordance with the strict requirements of ISO9001 international quality management system standard. In 1996, Deviser Instruments ISO9001 quality system passed the international certification and was registered and recognized.
