Handheld Cable & Antenna AnalyzerE7000B & E7060B Site

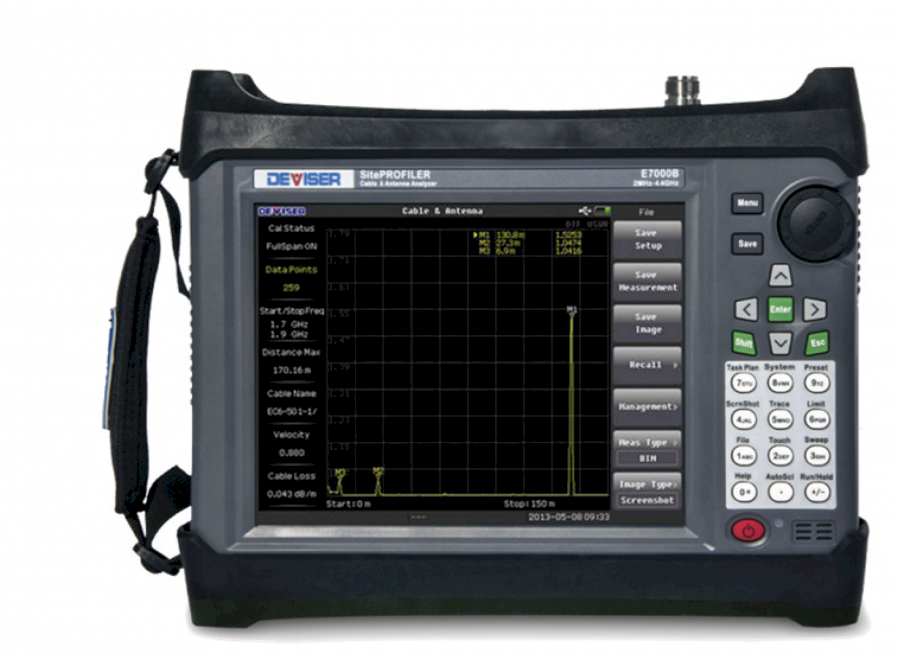

The E7000B (E7060B) SitePROFILER is a handheld Cable and Antenna System analyzer that performs RF coaxial and optical feedline measurements aimed at simplifying the installation, maintenance and troubleshooting of a wireless site’s feedline and antenna system. The difference between the two models is their operating frequency range.
- E7000B – operates from 2 MHz – 4.4 GHz
- E7060B – operates from 2 Mhz – 6.1 GHz
Base RF measurements include:

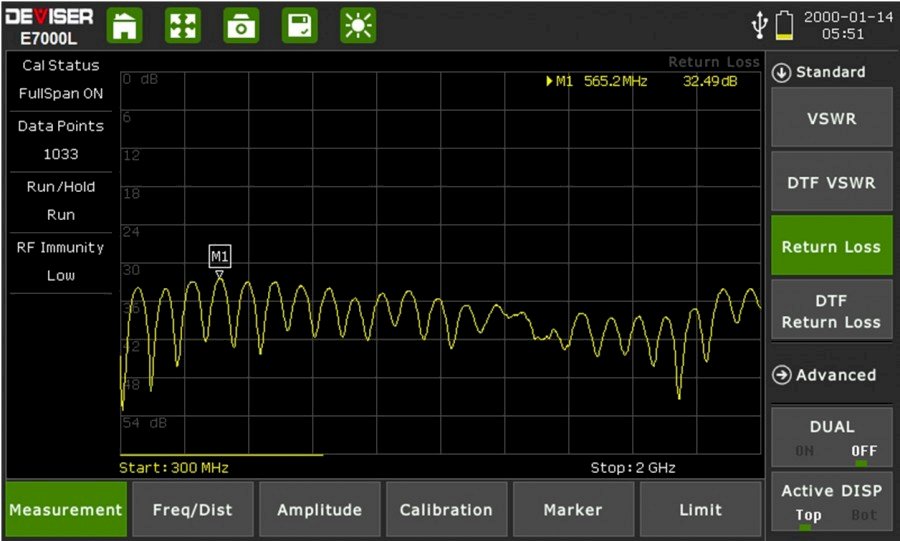

- Return Loss
- Voltage Standing Wave Ratio (VSWR)

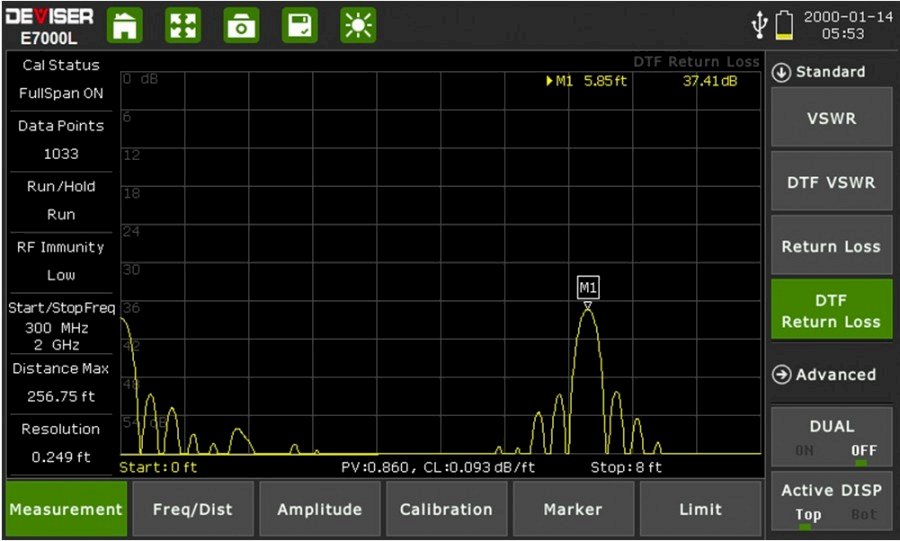

- Distance-to-Fault (DTF)
- Cable Loss
- 1-Port Phase
- Smith Chart
Optional feedline measurements can be added at the time of purchase or at the later date in the field as your test needs evolve. Software-enabled product options include RF power meters, an optical power meter, fiber inspection mode, an internal GPS receiver, and more. The GPS receiver enables the instrument to save location coordinates as well as measurement traces.
A bright 8.4-inch color display provides visibility even in broad daylight, while the instrument’s Li-Ion battery
delivers more than 8 hours of battery life. The resistive touchscreen and keypad enable users to navigate
menus by touch while entering text and numbers directly.
The internal 1GB flash memory can store approximately 5,000 traces or 2,000 setup files. Measurement data
and setup files can also be saved to a USB storage device or transferred to PC via LAN cable.
The SiteWorkbench companion software included provides a simple and easy way to manage, archive, and analyze current and past measurements, as well as generate and print reports. It also allows you to customize your cable, antenna, and signal standards lists.
With its lightweight, handheld design, ease of use, and rich functionality for testing both RF coaxial and fiber-optic feedline and antenna systems, the E7000B & E7060B SitePROFILERs provide the optimal test solution to characterize a cell site’s infrastructure.
The Deviser software-enabled measurement options can be added at the time of purchase, or at a later date
as your test needs evolve – without having to return the product to Deviser Instruments or one of its authorized
service centers.
These measurement options are detailed below.
Inline RF High Power Meter (Option DML-015)
The inline RF high power meter option provides true RMS measurements with accurate measurements for both CW and complex digitally modulated signals. It supports a 50M~6GHz frequency range. Option DML-015 does not include the external sensor apparatus (PN: E7000A-0050) necessary for the RF Power Meter.
Internal RF Power Meter, 20MHz – 4.4GHz (Option DML-E7000L-0040)
The Internal Power Meter option provides standard-accuracy RF power testing without the need for external equipment.
Optical Power Meter (Option DML-E7000-OPM)
The Optical Power Meter mode ensures accuracy and linearity over a wide wavelength range. It can be used for all optical power measurements, such as optical fiber loss measurement and optical device performance evaluation. No separate power meter accessory or additional tools are needed. Included with option DML-OPM is the Visual Fault Indicator (VFL) mode, providing a powerful light source for locating damaged or misapplied fiber.
Fiber Inspection measurement mode (Option DML-DI-1000)
Inspection of fiber optic connections is essential to ensure the performance and longevity of fiber-optic connectivity. Option DML-017L makes it fast and easy to certify that every connection at a cell site is optimized for enduring performance. The E7000B (E7060B) supports the handheld fiber probe (PN: DI- 1000LP), which is used to capture video images from the sensor, analyze the images for fiber-end face defects and contamination, and provide reliable PASS/FAIL results to guarantee the performance of your optical connections. The handheld fiber probe is not included with this option.
Internal GPS Module (Option DML-E7000L-0030)
The GPS High Precision option can be used to confirm the exact location (longitude, latitude, altitude) of measurement, as well as Universal Time (UT) information. Each trace can be stamped with location information to ensure you are taking measurements at the right location. Option DML-990L does not include the Deviser GPS-based antenna (PN: BDA700e).
