MODE A/C/S transponder, DME, TCAS, ADS-B and TIS Test SetIFR 6000

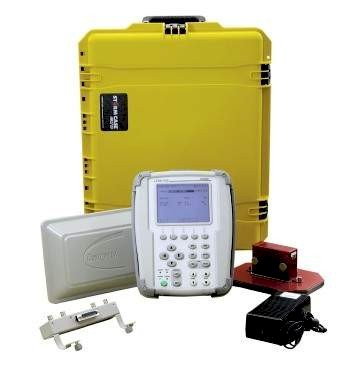

The IFR 6000 is a compact, lightweight and weatherproof unit designed for testing MODE A/C/S transponder, DME, TCAS, ADS-B and TIS avionics systems.



The IFR 6000 is a compact, lightweight and weatherproof unit designed for testing MODE A/C/S transponder, DME, TCAS, ADS-B and TIS avionics systems.

IFR 6000 features include:

  • Mode S level 1-4, (level automatically determined), FAR Part 43 appendix F, (including proposed Eurocontrol extension), Eurocontrol Elementary and Enhanced Surveillance
  • ADS-B MON/GEN/GICB
  • TIS
  • ICAO Annex 10 amendment 77
  • Quickly and easily provides accurate measurement of transponder transmitting frequency, power and receiver sensitivity. Predetermined configurations for testing any class of transponder.
  • Tests any DME 1 MHz spaced X or Y channel. Measurements include: interrogator transmitter frequency/peak power, Pulse Repetition Frequency (PRF), P1/P2 width and pulse spacing. Provides accurate range and velocity simulation, station ident, squitter control.
  • Simulates the airborne environment necessary to allow verification/certification of proper operation of an aircraft’s TCAS I and II installations.

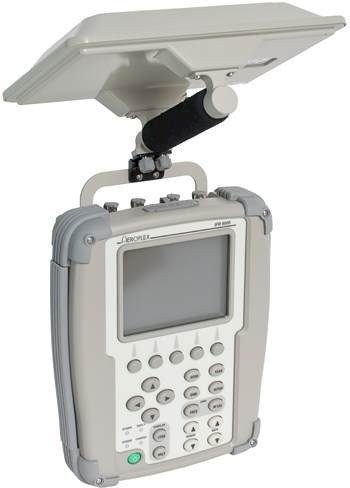

  • Detachable directional antenna

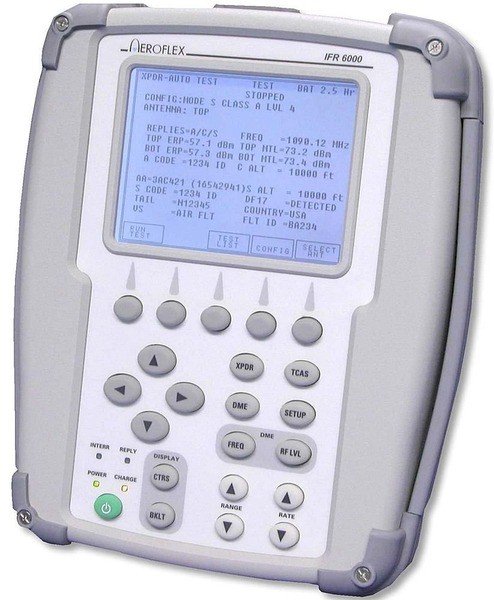

  • Large 5.7-inch LCD display

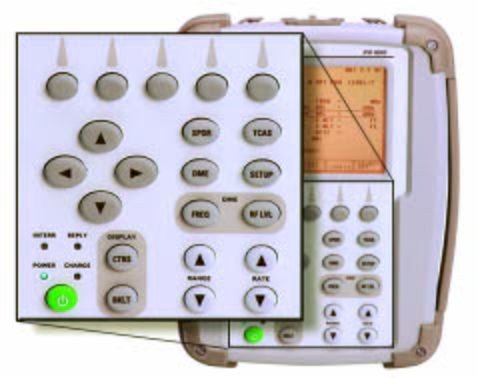

  • Simple user interface
  • Lightweight at less than 8 lbs.
