ACW 5 kV/100 mA(500 VA)
DCW 5 kV/20 mA, 7.2 kV/13.9 mA(100 W)
IR 0.001 MΩ to 100.0 GΩ (DC-25 V to -1000 V/DC+50 V to +7200 V)
PD 5 kV/50 mA(250 VA)
Rise Time Fall Time LAN USB RS232C Timer

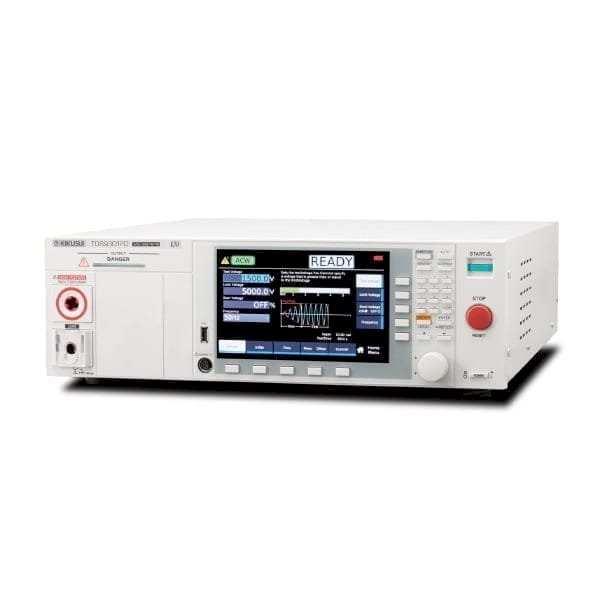

Hipot Tester with Insulation Resistance and Partial Discharge TestTOS9301PD Partial Discharge
Insulation diagnosis available with partial discharge model (TOS9301PD)
All measurement values and standard outlines displayed in each test
The partial discharge test detects the state before dielectric breakdown, so it can detect potential defects and
manufacturing variations that cannot be detected by the conventional withstand voltage test.
