- Operating voltage: 10 V to 1000 V (Min. 1.5 V)
- 20 kW capacity in a single, compact unit (PLZ20005WH2)
- 100 kW/ 2000 A with parallel operation (Max. 5 units), connectable with different models.
- Synchronized operation: Load-on/off control and sequence execution can be synchronized for multiple PLZ-5WH2 series units.
- Sequence function Program can be saved/loaded via USB memory
- Arbitrary I-V characteristics: Installed “ARB mode”
- New high visibility color display.
- Data-logging function: voltage/current/power/elapsed time/ integrated current/integrated power measurements. (Measurement display, programmable internal memory, stored as CSV format onto a USB memory.)
- Superposition of sinusoidal current (sine function, 1 Hz to 10 kHz)
- Cutoff function: The load can be turned off when the elapsed time, the voltage drop, the integrated current, or the integrated power reaches the specified value.
- LAN (LXI Compliant)/USB/RS232C standard interface

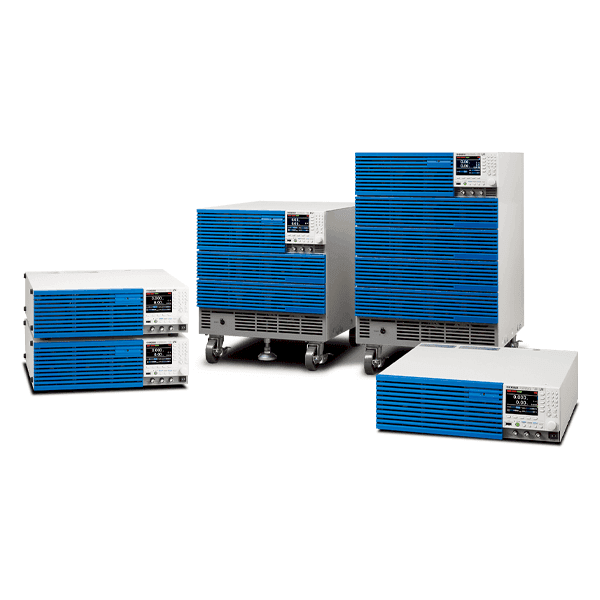

PLZ-5WH2 Series electronic loadPLZ-5WH2 Series
The PLZ-5WH2 high power DC electronicload series is where durable, reliable inge-nuity meets a multifunctional, high-power
design. Providing 5 varieties of powerrange line-ups, from 1 kW a bench topstyle model to high power model that cansink up to 20 kW of power in a single unit.Possible you can select the optimal capac-ty according to the load. Load simulationcan be achieved faster than ever before thanks to the reliable, high speed design ofthe PLZ-5WH current control circuits. Ac-curate current measurements can be made with an extremely high-setting resolution. A color LCD display allows for highly visible, user-friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system
