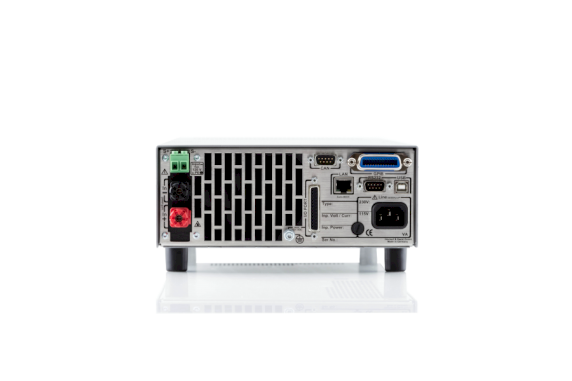

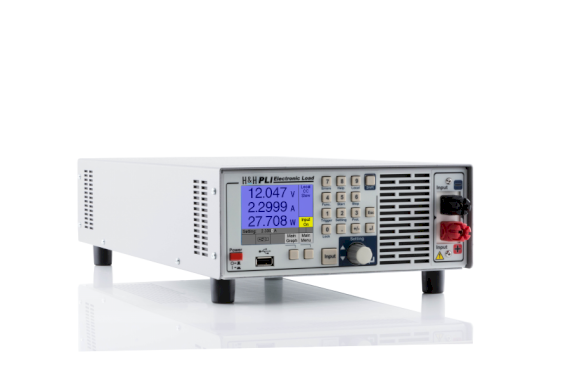

PLI Series

  • Voltage up to 1,200 V
  • 800 V isolation voltage between negative losd input and PE at galvanically isolated I/O port
  • Current up to 2,700 A
  • Power 600 W ... 28,800 W
  • Temporary power overload capacity, depending on model
  • High power density up to 2,100 W in 2 HU (3,200 W in 3 HU)
  • Ethernet + USB + RS-232 + CAN as standard (GPIB optional)
  • Intuitive operation
  • Quick operation by shortcuts
  • Current, voltage, resistance and power mode
  • MPPT Function
  • Energy storage test
  • Internal resistance measurement combineable with dynamic function
  • Protections for current and voltage
  • Dynamic loads
  • SCPI programming with measurement function
  • USB flash drive as measurement data memory
  • Electronic protection
  • Analog measurement outputs for voltage and current
  • Analog control input
  • Digital input and programmable control output
  • Silent fan cooling

Description

The PLI series of electronic loads provide a comfortable operation by a graphical user interface. The PLI series highlight is the extensive variety of standard interfaces. Apart from Ethernet, USB, RS-232 and Analog interface there is a standard CAN interface. Programming is done in SCPI syntax.

Functions

The units provide constant current mode, constant voltage mode, constant power mode and constant resistance mode.

In addition, protections for current and voltage can be set in any mode.

A static data acquisition function allows to store measurement data on an external USB flash drive.

Dynamic operation can be configured by up to 300 list point settings. The Electronic Load saves the synchronously acquired measurement data with timestamp.

A configurable trigger model controls data acquisition, static and dynamic settings.

Special Functions

Energy Storage Test/Discharge Function

An implemented test function enables discharging energy storages such as accumulators, batteries, ultracaps etc. in an easy way and supplying determined values like charge and energy.

Internal Resistance Measurement

Measurement of the internal DC resistance of energy storage systems such as batteries, accumulators, capacitors, as well as cables, power supplies and so on.

Watchdog Function

When the watchdog function is activated, the load input is switched off in the event of a faulty communication with the control PC in order to protect the connected test item.

MPP Tracking (Optional)

The Electronic Load automatically searches for the Maximum Power Point of solar panels and self-adjusts as the sun's radiation changes.

Loading capacity

The model range covers power classes from  600 W, up to 28,000 W continuous power rating.In addition the models up to 300 V have an overload capability. The height and duration of the possible overload depends on the temperature of the power stage. The unit indicates the currently possible overload. Therefore the units can be used  even for considerably more powerful applications.

Protections

  • Current limitation
  • Power limitation
  • Overtemperature protection
  • Undervoltage indicator
  • Protection of the  GND lines at the  Analog I/O Port

Data Interfaces

The following interfaces are included as standard:

  • Ethernet
  • USB
  • RS-232
  • CAN

LabVIEW drivers are certified by National Instruments.

Analog I/O Port

The standard Analog I/O Port provides the following functions:

  • Load setting C and V
  • Analog setting the C and V protections
  • Load on-off
  • Voltage monitor output
  • Current monitor output
  • Trigger input
  • Trigger output
  • Programmable digital input and  control output

Galvanically isolated Analog I/O Port

For the galvanic isolation between the Analog I/O Port and the load terminals the PLI06 option can be installed. Isolation voltage is 800 V.
Using this board also prevents ground loops.

Factory Calibration Certificate

A free Factory Calibration Certificate (FCC) is supplied with the devices. The FCC meets the requirements according to DIN EN ISO 9000ff. This calibration certificate documents the traceability to national standards to illustrate the physical device in accordance with the international System of Units (SI). Within the warranty period we calibrate a second time for free.

--> Conditions for a second free calibration

The recommended calibration interval is 2 years.

Documentation

We supply a User Manual as pdf file and printed General Safety Instructions, each in German and English.
