- Operation voltage: 0.25 V to 150 V
- High speed slew rate: 60 A/μs
- Arbitrary I-V characteristics: Installed “ARB mode”
- Parallel operation feature: The total current and power capacities can be increased to the maximum of 10.8 kW (2160 A) by connecting the booster units.
- New high visibility color display.
- Improved sequence feature (Maximum 10000 steps)
- LAN (LXI Compliant)/USB/RS232C standard interface *GPIB optional
- Setup memory can be saved to or loaded from a USB flash drive.

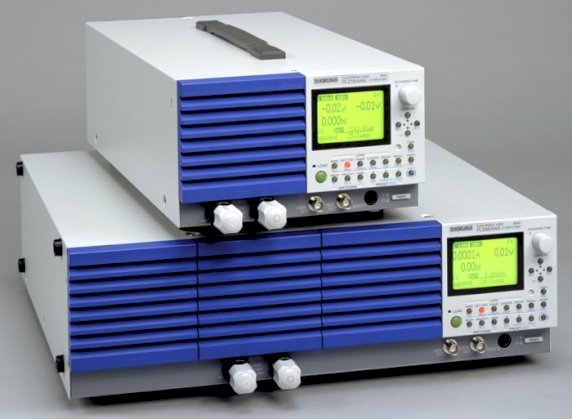

Electronics LoadsDC - PLZ 5W/5WZ SERIA
The PLZ-5W series electronic load is the successor of the high-ly respected PLZ-4W that continues the series tradition of high
specification and excellent build quality.New improvements include a user-friendly LCD color displayand a wide voltage range from 0.25 V to150 V. Custom voltage/current profilescan now be programmed using the newARB function, ideal for LED driver and solar panel testing. The PLZ-5W nowincludes 6 basic modes of operation(CC, CR, CV, CP, CC+CV, & CR+CV)
for optimal flexibility in any test facility.The PLZ-5W is now equipped with ahigh-speed response feature boasting a maximum slew rate of 60 A/us (PLZ1205W) and a minimumsetting resolution of 10 uA (PLZ205W). Additional features include a soft-start function, variable slew rate, selectable response mode (CV/CR mode), switching func-tion, ABC programmable memory, 20 user-defined setup config-urations, and a sequence function. The high-speed response ofthe PLZ-5W is ideal for the development and testing of modernday power supplies that require sudden changes in current athigh speeds as well as for testing of current clamps and trans-ducers. The PLZ-5W series is available in 4 standard modelswhich can be incrementally expanded by adding booster units(PLZ2405W) for a maximum of 10.8 kW/2160 A. The PLZ-5Wnow is equipped with a diverse digital communication interface
supporting LAN (LXI), USB, RS232C, analog control, and GPIB as a factory option
