AC 10 kV/50 mA
DC 5 kV/20 mA, 10 kV/10 mA (100 W)
insulation resistance testing: 0.001 MΩ to 100.0 GΩ (DC-25 V to -1,000 V/DC+50 V to +10,000 V)
Rise Time Fall Time LAN USB RS232C Timer

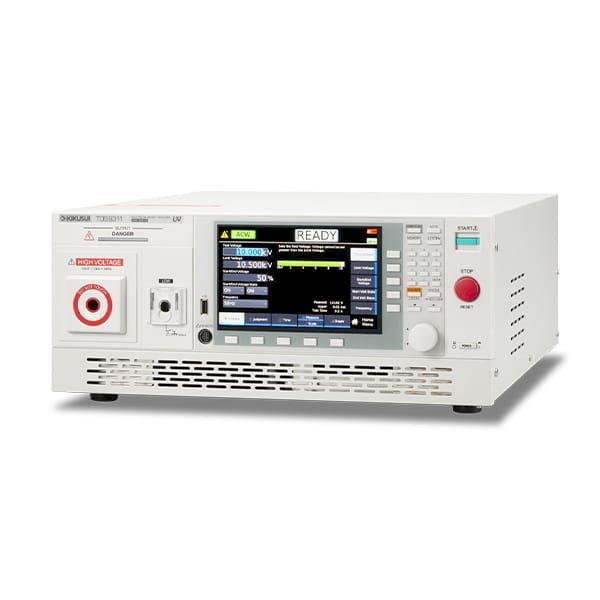

Multifunctional Safety AnalyzerTOS 9311 ( 10kV )

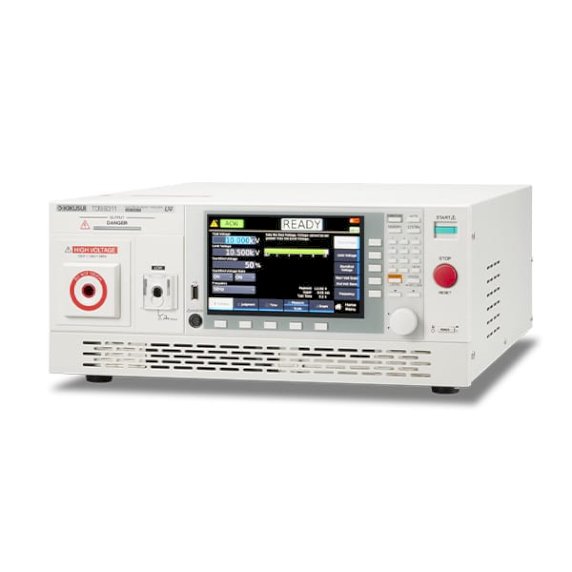

Multifunctional Safety Analyzer (10 kV model)
TOS9311 Catalogue
A new model of our latest multifunctional high voltage safety analyzer.
A single unit allows for three types of tests: ACW/DCW/IR.
Maximum voltage for AC withstand voltage testing: 10 kV/50 mA
Maximum voltage for DC withstand voltage testing: 5 kV/20 mA, 10 kV/10 mA (100 W)
Measurement range of insulation resistance testing: 0.001 MΩ to 100.0 GΩ (DC-25 V to -1,000 V/DC+50 V to +10,000 V)
A Withstanding voltage test can also be used for quick NG judgment. The detection sensitivity can be selected from 5 levels.
LAN/USB/RS232C come as standard
A color LCD shows measured values and a standard overview for each test.
